Sealing machine
| Standard | Dynamic | |
|---|---|---|
| Type of machine | DH 900 250 / DH 556 250 / DH 762 250 | DH UNI 250 |
| Final product | Sealing on primers and bullets for one type of cartridge | Adjustable machine for caliber 9mm or 5.56mm or 7.62 mm |
| Imput components | complete cartridge | complete cartridge |
| Concept | Linear | Linear |
| Capacity | 250pcs/min | 250pcs/min |
| Power/Voltage | 3kW/3x400V | 3kW/3x400V |
| Processs control | remote control PLC + Micro Tik support service | remote control PLC + Micro Tik support service |
| Air presure | 6 bar | 6 bar |
| Dimensions | length 3 m x height 2,6 m x width 1,4 m | length 3 m x height 2,6 m x width 1,4 m |
| Weight of the machine | 1,4t | 1,4t |
| Feeder | two rotary feeders | two rotary feeders with changeable parts |
| Filling conveyor | OPTION | OPTION |
| Machine output for product | OK parts for box | OK parts for box |
| Process control | UV camera process control | UV camera process control |
| Special | cooperation with company Andree AG – dispensers | cooperation with company Andree AG – dispensers |

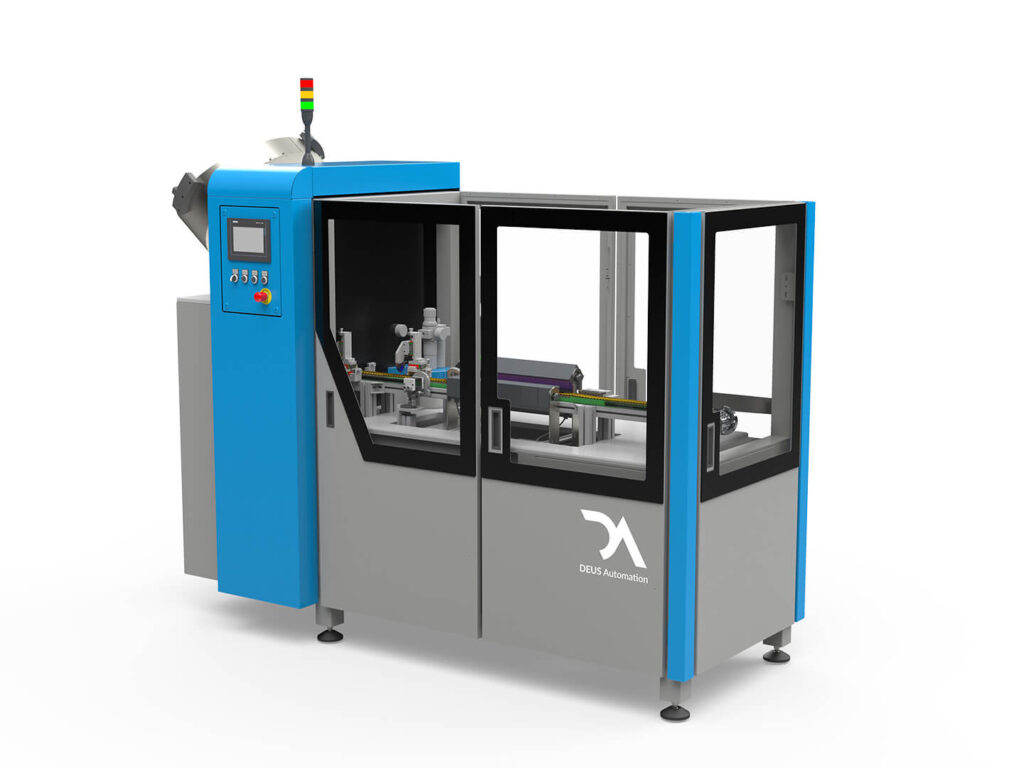

The sealing machine is designed for ammunition sealing. The system can seals casemouth and primer.
The machine utilizes precision dispensing valves and UV curving light including camera detection of both sealing areas.
Automatic station can be a part of assembly line for ammo production and it is serviced by one operator.
The sealing process could be also integrated in packaging machine.
The standard device can be used for one type of cartridge and the dynamic device can be adjustable for calibers 9×19 mm, 5,56x45mm, .223REM, 7,62×39 mm and 7,62×51 mm.
