Camera check machines

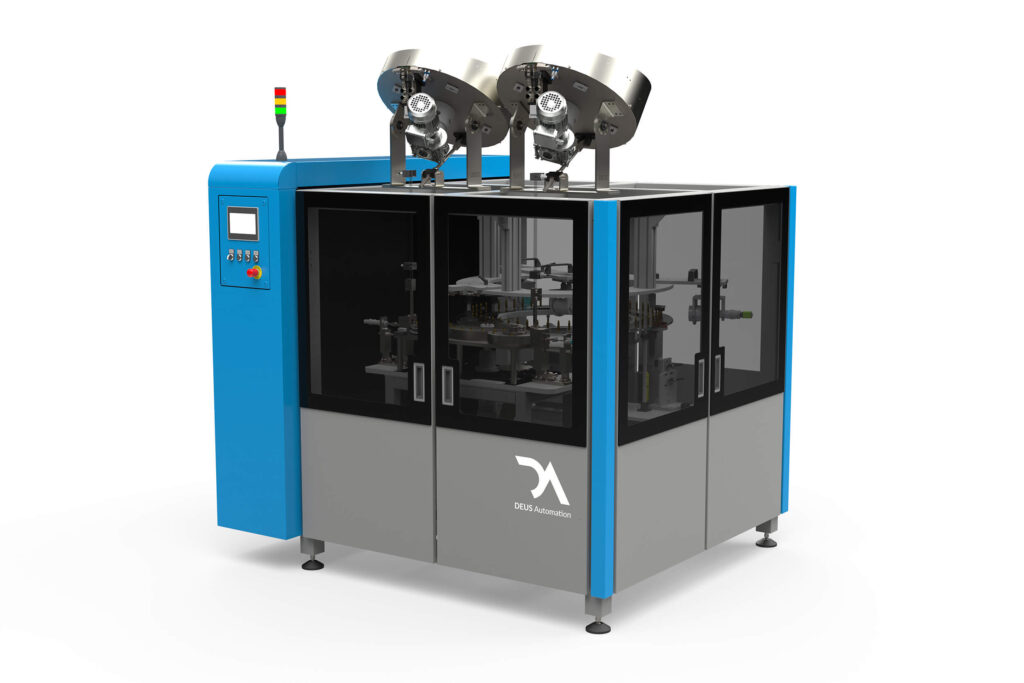

Camera check machine
Bullet

Technology is used for automatic checking of the bullet.

Control parameters can be specified according to customer requirements.

Automatic station can be a part of assembly line for ammo production and it is serviced by one operator.

The device can be produced for caliber 9 mm, 5,56 mm, 7,62 mm or 12,7 mm.

Article Standard
Type of machine DKS 900/ DKS 556/ DKS 762/ DKS 127
Final product control of the whole bullet
Input components bullet
Concept carousel machine
Capacity 250pcs / min
Power/Voltage 1kW/3x400V
Process control remote control PLC + Micro Tik support service
Air pressure 6 bar
Dimensions length 2,1 m x height 2,4 m x width 1,8 m
Weight of the machine 0,9 t
Feeder two feeders
Filling conveyor option
Standard camera check machines
DKS 900 / DKS / 556 / DKS 762 / DKS 127

Camera check machine
Case

Technology is used for automatic checking of the cartridge case.

Control parameters can be specified according to customer requirements.

Automatic station can be a part of assembly line for ammo production and it is serviced by one operator.

The device can be produced for caliber 9 mm, 5,56 mm, 7,62 mm or 12,7 mm.

Article Standard
Type of machine DKK 900/ DKK 556/ DKK 762/ DKK 127
Final product control of the case
Input components case
Concept carousel machine
Capacity 250pcs / min
Power/Voltage 1kW/3x400V
Process control remote control PLC + Micro Tik support service
Air pressure 6 bar
Dimensions length 2,1 m x height 2,4 m x width 1,8 m
Weight of the machine 0,9 t
Feeder two feeders
Filling conveyor option
Standard camera check machines
DKK 900 / DKK 556 / DKK 762 / DKK 127

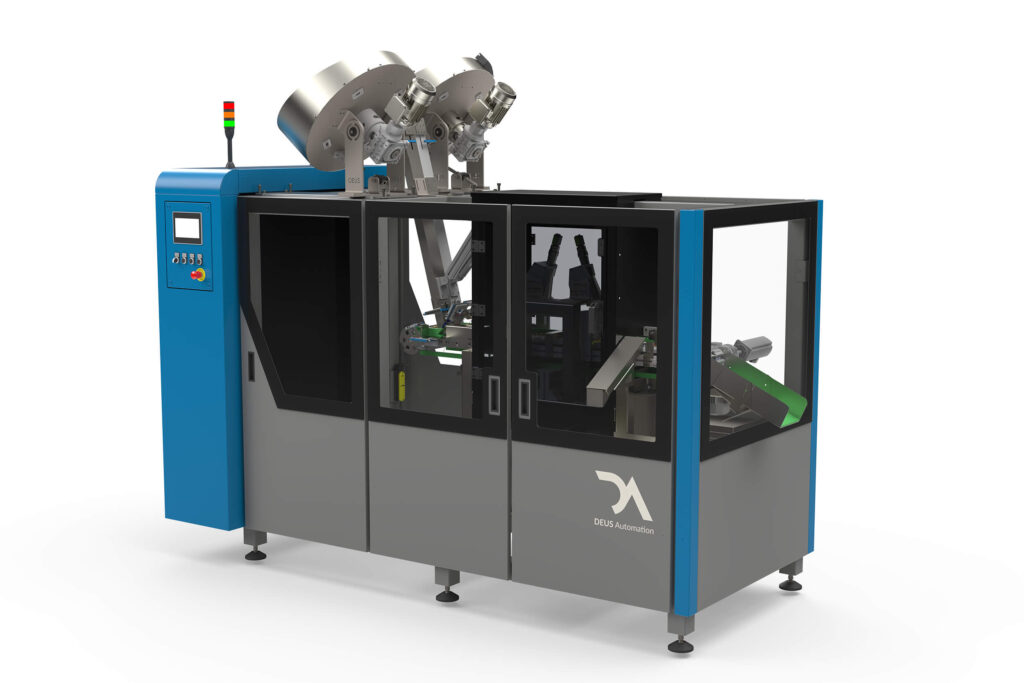

Camera check machine
Cartridge

Technology is used for automatic checking of the whole cartridge.

Control parameters can be specified according to customer requirements.

Automatic station can be a part of assembly line for ammo production and it is serviced by one operator.

The device can be produced for caliber 9 mm, 5,56 mm, 7,62 mm or 12,7 mm

Article Standard
Type of machine DKN 900/ DKN 556/ DKN 762/ DKN 127
Final product control of the whole cartridge
Input components cartridge
Concept linear machine
Capacity 250pcs / min
Power/Voltage 1kW/3x400V
Process control remote control PLC + Micro Tik support service
Air pressure 6 bar
Dimensions length 2,8 m x height 2,4 m x width 1,4 m
Weight of the machine 0,9 t
Feeder two feeders
Filling conveyor option
Standard camera check machines
DKN 900 / DKN 556 / DKN 762 / DKN 127
⇧
