Primer inserting including sealing
Technology is used for automatic insertion of primer in cartridge case.
Group of cartridge is formed by cartridge case and primer. Presence of primer is checked by camera. For NATO version can be primer reinsured by Crimp method.
The process is finished by sealing of primer.
Automatic station can be a part of assembly line for ammo production and service is provided by one operator.
The device can be produced for caliber 9 mm, 5,56 mm, 7,62 mm.
| Standard | |
|---|---|
| Type of machine | DZH 900 DZH 556 DZH 762 |
| Final product | case with crimped and sealed primer |
| Input components | primer, case and sealant |
| Concept | carousel machine – two rotating tables sealing process |
| Capacity | 125pcs / min |
| Power / Voltage | 3kW / 3x400V |
| Process control | remote control PLC + Micro Tik support service |
| Air pressure | 6 bar |
| Dimensions | length 2,8 m height 2,4 m width 1,7 m |
| Weight of the machine | 2,2 t |
| Feeder | one rotary feeder |
| Filling conveyor | option |
| Machine output of product | OK parts for box |
| Process control | camera check |

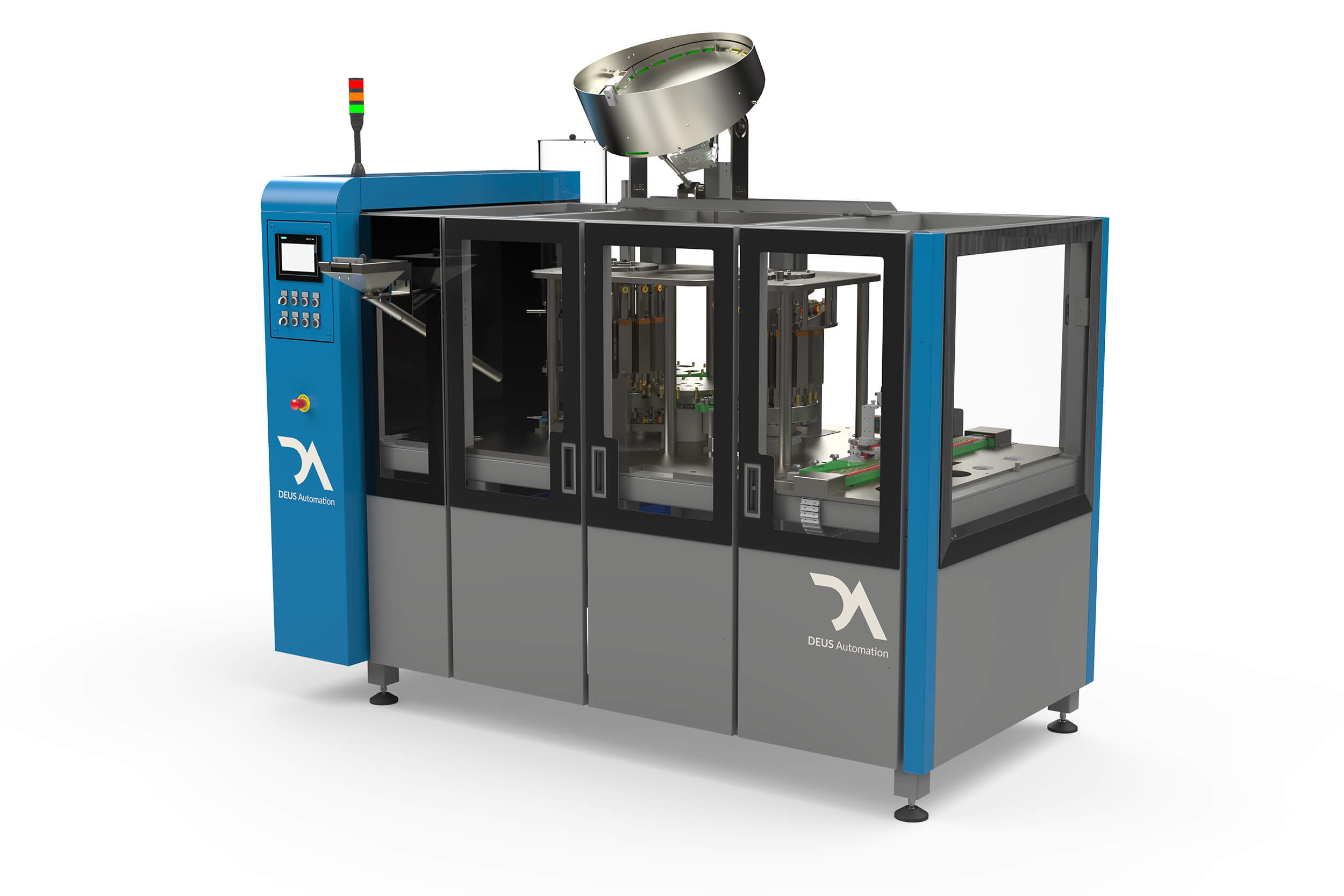

DZH 900 / DZH 556 / DZH 762
Primer inserting machine including sealing
DZH 900 / DZH 556 / DZH 762
