Primer inserting machines

Primer inserting machine

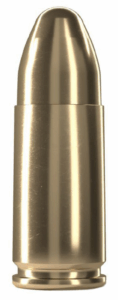

9 mm

Technology is used for automatic insertion of primer in cartridge case.

Group of cartridge is formed by cartridge case and primer.

Automatic station can be a part of assembly line for ammo production and service is provided by one operator.

The device can be produced for caliber 9×18 mm, 9×19 mm.

Article Standard Dynamic
Type of machine DZ 900 150 DZ 900 300
Final product case with primer case with primer
Input components primer and case primer and case
Concept carousel machine – one rotating table carousel machine – two rotating tables
Capacity 150pcs / min 300pcs / min
Power/Voltage 1,7kW/230V 2,2 kW / 230V
Process control remote control PLC + Micro Tik support service remote control PLC + Micro Tik support service
Air pressure 6 bar 6 bar
Dimensions length 1,3 m x height 2,2 m x width 1,1 m length 2,0 m x height 2,2 m x width 1,1 m
Weight of the machine 1,0 t 1,4 t
Feeder one rotary feeder two rotary feeders
Filling conveyor option option
Machine output of product OK parts for box OK parts for box
Process control camera check camera check

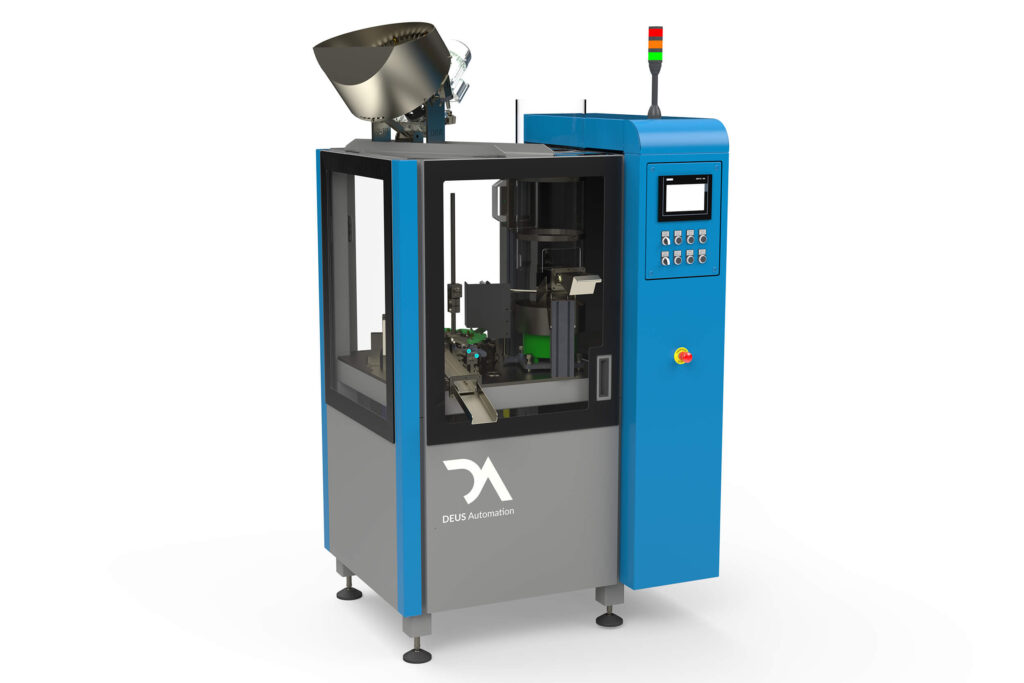

Standard primer inserting machine DZ 900 150

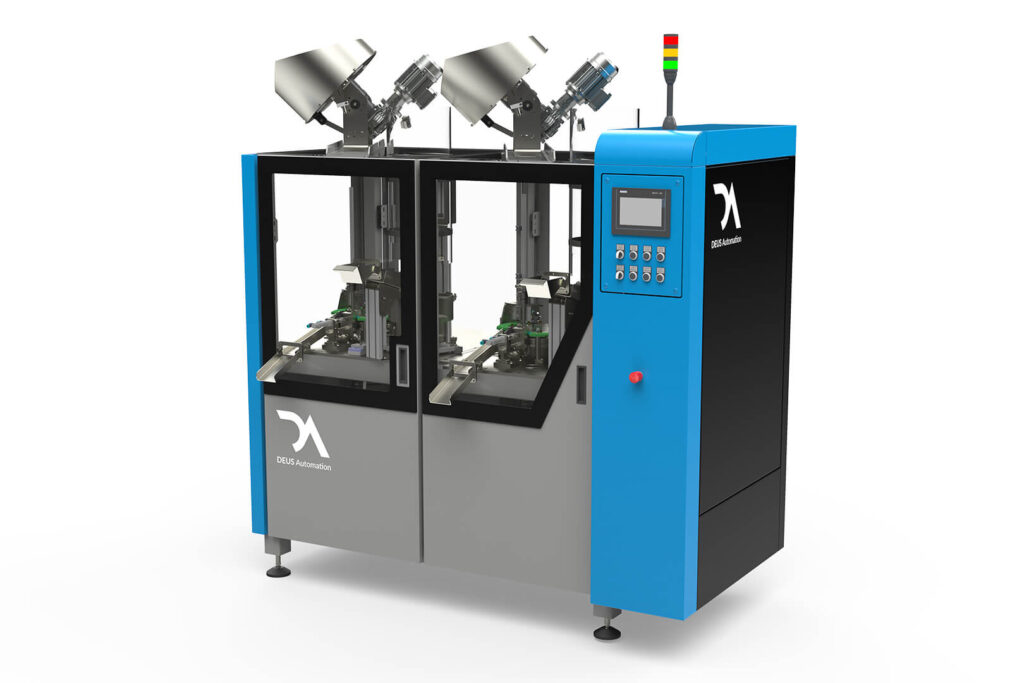

Dynamic primer inserting machine DZ 900 300

Primer inserting machine
5,56 mm

Technology is used for automatic insertion of primer in cartridge case.

Group of cartridge is formed by cartridge case and primer.

Presence of primer is checked by camera.

For NATO version can be primer reinsured by Crimp method.

Automatic station can be a part of assembly line for ammo production and service is provided by one operator.

The device can be produced for caliber 5,56×45 mm and .223REM.

Article Standard Dynamic
Type of machine DZ 556 125 DZ 556 250
Final product case with primer case with primer
Input components primer and case primer and case
Concept carousel machine – two rotating tables carousel machine – two rotating tables
Capacity 125pcs/min 250pcs/min
Power/Voltage 1,7kW/230V 2,2kW/230V
Process control remote control PLC + Micro Tik support service remote control PLC + Micro Tik support service
Air pressure 6 bar 6 bar
Dimensions length 1,5 m x height 2,4 m x width 1,1 m length 2,6 m x height 2,4 m x width 1,1 m
Weight of the machine 1,2 t 1,8 t
Feeder one rotary feeder two rotary feeders
Filling conveyor option option
Machine output of product OK parts for box OK parts for box
Process control camera check camera check

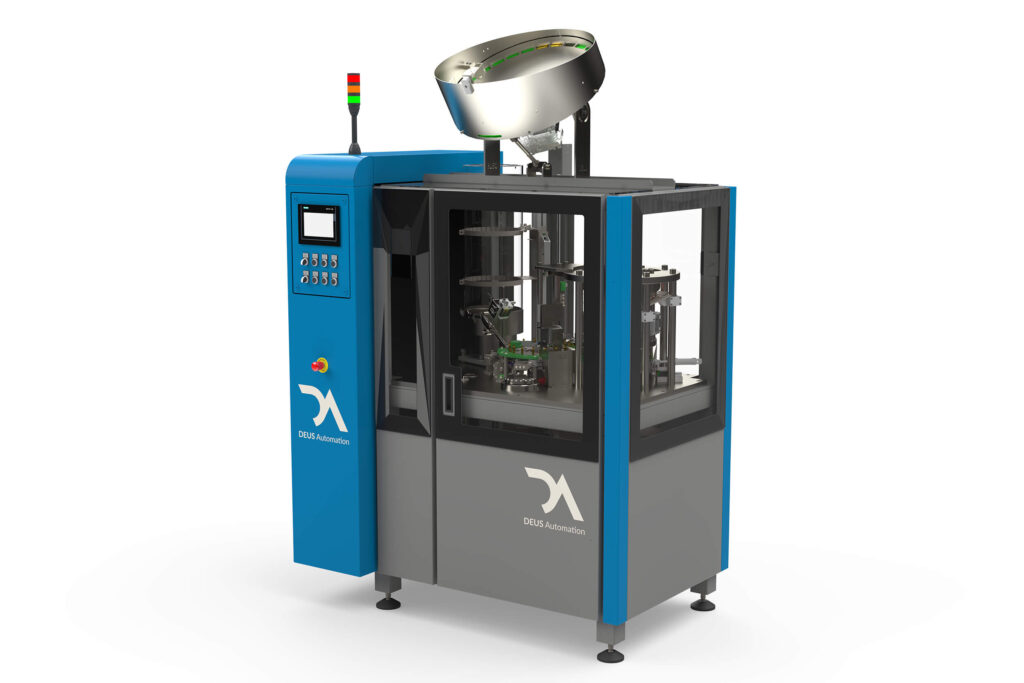

Standard primer inserting machine DZ 556 125
Dynamic primer inserting machine DZ 556 250

Primer inserting machine
7,62 mm

Technology is used for automatic insertion of primer in cartridge case.

Group of cartridge is formed by cartridge case and primer.

Presence of primer is checked by camera.

For NATO version can be primer reinsured by Crimp method.

Automatic station can be a part of assembly line for ammo production and service is provided by one operator.

The device can be produced for caliber 7,62×39 mm and 7,62×51 mm.

Article Standard Dynamic
Type of machine DZ 762 125 DZ 762 250
Final product case with primer case with primer
Input components primer and case primer and case
Concept carousel machine – two rotating tables carousel machine – four rotating tables
Capacity 125pcs / min 250pcs / min
Power/Voltage 1,9kW / 230V 2,7kW / 230V
Process control remote control PLC + Micro Tik support service remote control PLC + Micro Tik support service
Air pressure 6 bar 6 bar
Dimensions length 2,1 m x height 2,5 m x width 1,4 m length 3,7 m x height 2,5 m x width 1,4 m
Weight of the machine 1,5 t 2,2 t
Feeder one rotary feeder two rotary feeders
Filling conveyor option option
Process control camera check camera check
Machine output of product OK parts for box OK parts for box
Standard primer inserting machine DZ 762 125
Dynamic primer inserting machine DZ 762 250
⇧
